PhIn6 documentation

Purchase Here: https://www.tindie.com/products/13252/ -- or build your own with the files below!

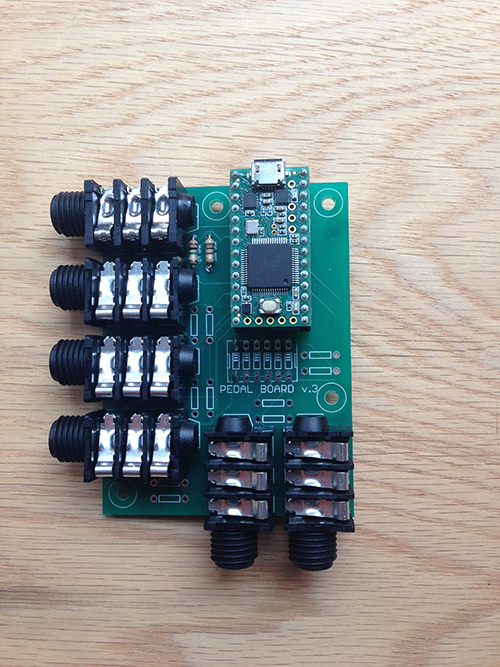

The PhIn6 is a shield for the Teensy microcontroller that allows for a maximum of 6 MIDI foot pedal inputs (sustain or expression) and/or contact microphones. It can also used with other knobs or sensors that you might like to build yourself. Check out the schematic to see if it will work for your projectThis hardware is MIDI-over-usb and automatically accessible in any software that recognized MIDI devices. It is available as a kit or fully assembles and coded for those who need immediate functionality. This is open source hardware and software so feel free to adapt and use for your own purposes. Here's the arduino library I've developed for it.

Phin6 Arduino Library

Example Max/MSP patch

Board Technical Diagram

Schematic.
